ServiceDrive VFD Cable System Application

SERVICEDRIVE®

  •

ServiceDrive® Protects Against Costly Diagnosis, Downtime, and Repair

Maximize the life and performance of your critical drive systems today with the only complete solution for variable frequency drive (VFD) applications. The ServiceDrive® VFD Cable System consists of cable, self-terminating connectors, and termination kits. Available in tray and interlocked armor constructions, #14 AWG – 750 Kcmil, dual rated 600V/1kV or 2kV copper with overall PVC or ServiceDrive Plus® (Factory Mutual Group 1 LSZH) jacket.


The ServiceDrive® VFD Cable System is the ultimate solution for protecting against costly diagnosis, downtime, and repair caused by common issues associated with variable frequency drives, including electro-magnetic interference (EMI), premature cable failure, stray currents, and motor bearing failure.


EMI (ELECTRO-MAGNETIC INTERFERENCE)

VFDs inherently generate more EMI that gets radiated into the environment. The EMI emitted from the power cable can induce voltages, currents, or crosstalk onto adjacent cables, which is potentially dangerous to surrounding equipment.
SOLUTION: ServiceDrive® uses a 5-mil copper tape shield with 50% overlap to ensure full containment, reducing EMI emissions from the cable.


PREMATURE CABLE FAILURE

Thermoplastic insulation, like THHN, cannot withstand the voltage spikes associated with VFDs, resulting in hotspots and pinholes in the insulation and arcing across wires.
SOLUTION: ServiceDrive® uses NFPA 79 compliant thermoset (XLPE) insulation, which better resists the elevated temperatures generated when voltage stresses are high.


STRAY CURRENTS

Common mode or stray currents occur when current is unintentionally induced into the grounding system or other unintended conductors instead of being contained inside the cable and off the ground path. This can cause unwanted issues with control systems and mechanical parts, significantly affecting reliability and performance.
SOLUTION: The complete ServiceDrive® System provides the best low impedance path and addresses the effect of common mode currents to the drives, motors, and electronic equipment within proximity of the drive system.


MOTOR BEARING FAILURE

Stray currents traveling through the motor create pits and fluting in the motor and bearing raceway. Once this starts, it is self-perpetuating, substantially shortening the lifespan of the motor and ultimately resulting in premature motor failure.
SOLUTION: Because the stray currents in the grounding system are reduced or completely eliminated, ServiceDrive® minimizes bearing failure due to common mode currents and intermittent trips or damage to sensitive electronic equipment.


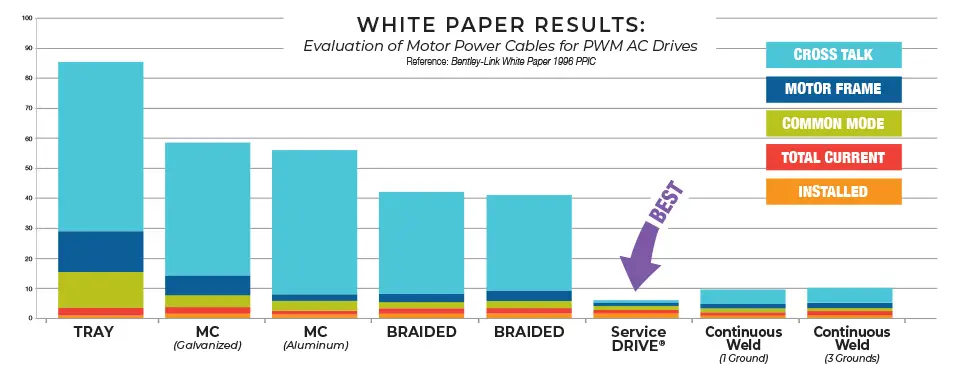

ServiceDrive® Solution

The ServiceDrive® VFD Cable System is designed to reduce EMI emissions from the cable, provide a low impedance return path, and reliably withstand high voltage spikes. Independent laboratory and field-testing by prominent end-users have proven that our design is the best solution available. ServiceDrive® and ServiceDrive Plus® are the Engineer’s choice.


ServiceDrive VFD Cable System Logo

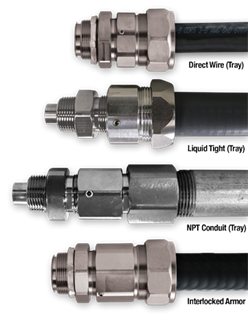

ServiceDrive VFD Self-Terminating Connectors: Direct Wiring, Liquid Tight, NPT Conduit, and Interlocked Armor (Jacketed MC)


TERMINATING CONNECTORS

Introducing the latest technology in drive protection, the industry-leading ServiceDrive® VFD Cable System now includes self-terminating connectors for direct wiring, liquid tight, NPT conduit, and interlocked armor installations. These patented connectors are key to unlocking the full benefits of the complete ServiceDrive® System, protecting drives, motors, bearings, and surrounding equipment.




U.S. Patent No. 7,309,835

Tray SYSTEM PARTS    request quote     MC SYSTEM PARTS
