Data Center

Case Study:
DATA CENTER

  •



Wire & Cable in a Mission Critical Data Center

Copper Line Break

OUR SOLUTION      FOLLOW-UP QUESTION





Data Center Wire and Cable Application Illustration

SUBMIT A QUESTION

SELECTION GUIDE



DATA CENTER CABLE: FORM AND FUNCTION

When it comes to powering data centers, tech giants need reliable cable that can keep pace with their processing speed and efficiency. However, the single or parallel conductors commonly used to distribute power can be cumbersome to set up and install.

A data center in the Carolinas wanted something different—a cable that better fit the company’s intricate design and confines of the server floor. ServicePlex® was the perfect match.


INSTALLING SERVICEPLEX ON THE SERVER FLOOR

Service Wire’s 500 Kcmil ServicePlex® was easily run overhead in tray from the electrical service panels to the data center’s customized tap boxes, powering the mission critical servers.

The prefab single conductors cut down the number of pulls and allowed the contractor to use smaller tray, saving on labor and material costs. During installation, the prefab ServicePlex® also used 75% fewer cable ties, requiring only one tie every six feet instead of four.

The combination of ServicePlex® and "true color" conductors makes for easy phase identification and creates a clean, visual design that’s perfect for both contractors and data center operation managers.


BEST CHOICE FOR DATA CENTER APPLICATIONS

ServicePlex® is an ideal choice for data center applications. Once installed, contractors are loyal to this prefab twisted cable and its repeatable results. Its engineered advantages, colored conductors, and cost savings offer a competitive edge when bidding on new projects.

DATA CENTER
CABLE SELECTION

Blue Line Break

Service Wire's products can be used in an array of applications inside a data center to power the electrical room, overhead lighting, fire safety systems, HVAC, servers, and more. Our most popular data center wire and cable products include:

  • No Pulling Lubricant Required ServicePro-X® Single Conductors
  • ServicePlex® Twisted Multiconductor Cables
  • Dual Rated Tray Cable
  • Interlocked Armor Feeder MC

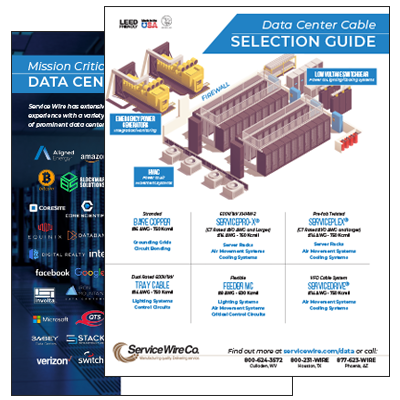

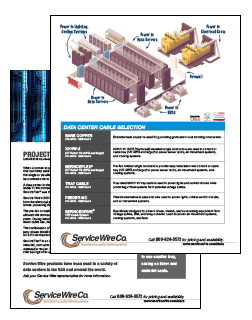

Download our Data Center Wire and Cable Selection Guide to learn more about our full line up.





Bare (Solid and Stranded) and Tinned (Solid and Stranded) Copper Wire

BARE COPPER

Solid or Stranded

AVAILABLE:
#16 AWG - 750 Kcmil
Soft, Medium Hard, or Hard Drawn
Tinned or Non-Tinned

Building Wire and Cable for Heavy Commercial Applications

ServicePRO-X®

No Pulling Lubricant Required
(#6 AWG and Larger)

  • XHHW-2 600V/1kV Copper
  • USE-2 or RHW-2 600V/1kV Copper
  • RHW-2 or RW90 1kV/2kV Copper

AVAILABLE:
#14 AWG - 750 Kcmil
Tinned Conductors
VW-1 Rated
Wide Range of Colors
Silicone-Free

ServicePLEX prefab, twisted single conductor building wire

ServicePLEX®

Prefab Twisted Single Conductors

  • XHHW-2 600V/1kV Copper
  • USE-2 or RHW-2 600V/1kV Copper

AVAILABLE:
#14 AWG - 750 Kcmil
2-7 Conductors
Built-In Grounds
Pre-Installed Pulling Heads
Wide Range of Colors
Silicone-Free

Shielded and Non-Shielded Dual Rated 600V/1kV AAP Tray Cable

TRAY CABLE

TC-ER Rated

  • XHHW-2 Inner Conductors
    Colored, Numbered, or Striped Conductor

AVAILABLE:
Dual Rated 600V/1kV or 2kV
#14 AWG - 750 Kcmil
2-37 Conductors
Tinned or Non-Tinned
Shielded or Non-Shielded
PVC, ServiceCPE®, or EnviroPLUS® Jacket

Aluminum or Galvanized Steel Interlocked Armor (AIA) Feeder MC (Metal-Clad) Cable

FEEDER MC

Flexible Interlocked MC (UL 1569)

  • XHHW-2 Inner Conductors
    Colored, Numbered, or Striped Conductors

AVAILABLE:
#8 AWG - 600 Kcmil
2-4 Conductors
120V and 480V Color Codes
50% Ground
PVC, ServiceCPE®, or EnviroPLUS® Jacket

Tray and Armor Variable Frequency Drive Cable - ServiceDRIVE VFD Cable System

ServiceDRIVE®

VFD Cable System

  • VFD Tray/Power Cable
    600V/1kV or 2kV Copper
  • VFD Jacketed Armor
    2kV Copper

AVAILABLE:
#14 AWG - 750 Kcmil
PVC, ServiceCPE®, or EnviroPLUS® Jacket
